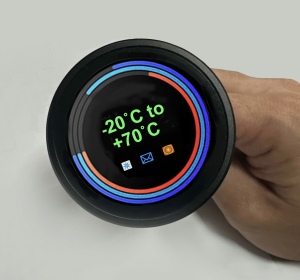

Cost-effective, bright 2.1 inch circular LCD display
Inelco Hunter has introduced a new, bright 2.1 inch circular LCD display. It features 480×480 dots RGB resolution, IPS technology, a digital 18-bit RGB interface and 350nits 20K MTBF. This cost-effective display is suitable for applications such as smart home control panels, vending machines and measurement devices, industrial control, and transport.
IPS (in-plane switching) is a screen technology for LCDs. With IPS, a layer of liquid crystals is sandwiched between two glass surfaces. IPS panels are said to offer excellent colour accuracy combined with wide viewing angles.
The 2.1 inch circular display offers a full viewing angle with a transmissive, normally black screen and 350 cd/m² brightness. It has an operating temperature range of -20°C to +70°C with a rated lifetime of 20,000 hours (MTBF) at standard conditions. The display is powered by an ST7701SN (or compatible) driver IC, offering robust performance.
Inelco Hunter provides advanced electronic solutions across industrial, medical, and commercial sectors, combining high-quality products with technical design support, helping customers to select and implement the right solution for their application.
www.inelcohunter.co.uk/circular
