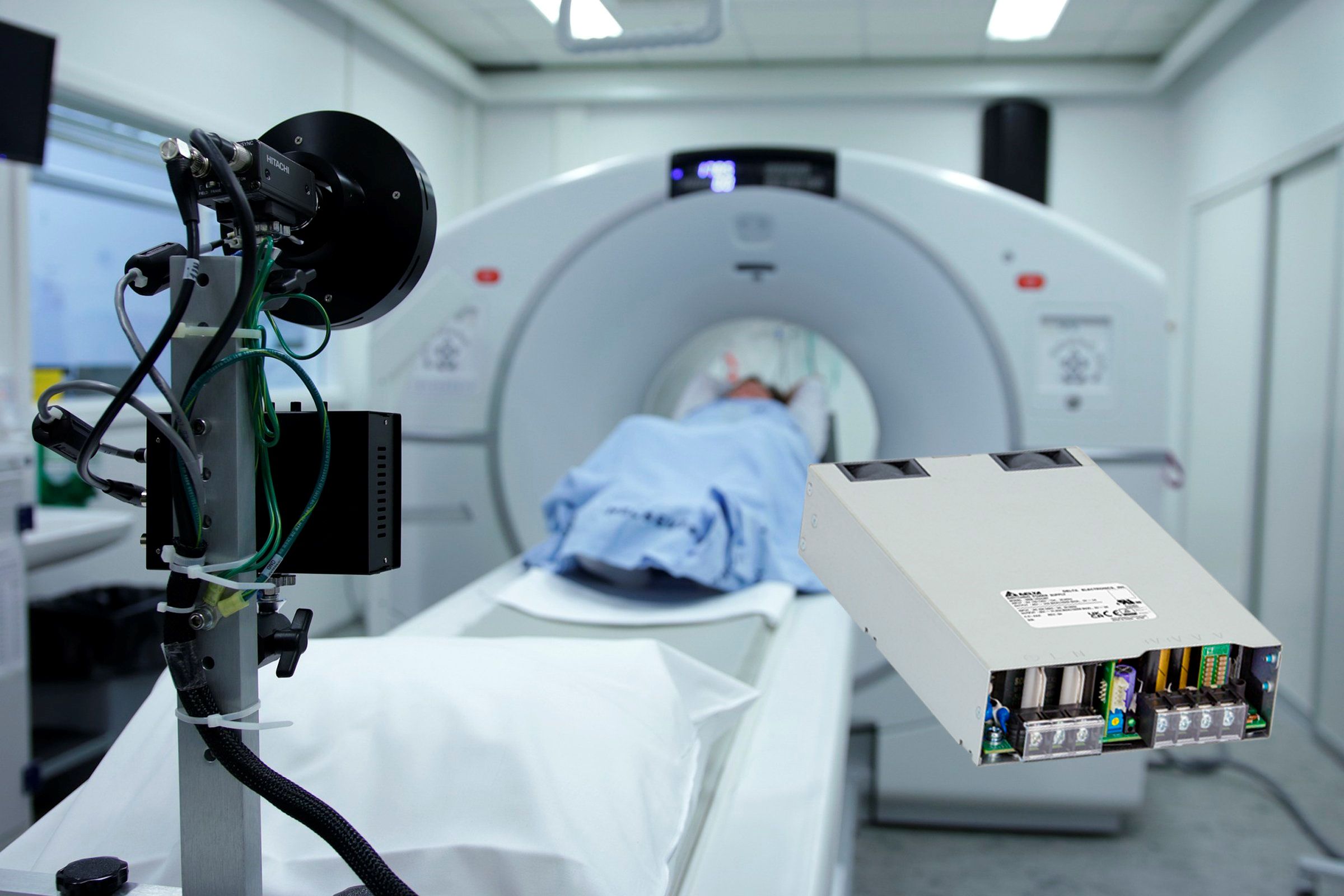

Delta expands the MEB Series with the launch of the 1,500 W medical grade enclosed power supply – MEB-1K5A. The MEB-1K5A is a compact 5” x 8.03” footprint and provides a single output voltage of either 24 or 48 V.
Among the many on board features are current sharing, analog voltage trimming, remote on/off control and intelligent fan speed control. There is also an additional 5 V / 2 A standby output and the unit offers up to 92% efficiency with a wide operating temperature range from -20°C to +70°C (full power available to +50°C). The MEB-1K5A 48 V model can further support up to 2,200 W peak power for 300 ms.
The MEB-1K5A is certified to medical and AV/ICT equipment safety approvals, including IEC/EN/BS EN/ANSI/AAMI ES 60601-1, IEC/EN/BS EN/UL 62368-1. The MEB-1K5A 24 V model complies with IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1, IEC/EN/BS EN 61558-2-16 for household appliances and EMC standards EN 55011/EN55032. It also meets the EN 61000-3-2 harmonics as well as EN 61000-4 and EN 60601-1-2 (Edition 4) immunity standards.
Now available from Luso Electronics, the MEB-1K5A is applicable for industrial applications such as collaborative robots, laser machines and test and measurement instruments, as well as medical applications such as ultrasound and aesthetic equipment.
Highlights & features
- Up to 1,500 W in 5″x8.03″x1.59″ package
- Up to 23.5 W/inch3 power density
- Full power up to 50°C ambient
- Up to 500 KHrs MTBF
- 5V/2A standby output
- Current sharing
- Conformal coating
- Class B conducted and radiated EMI
- LED indicator
- Remote on/off control
- Analog voltage trimming
- Intelligent fan speed control
Luso Electronics’ product specialists are on hand to assist with product selection and guide you through the design cycle. The company offers technical and commercial support.
