Nisshinbo Micro Devices Inc., a specialist in advanced semiconductor products, has released the NA2200 Analog Front End (AFE). Designed to meet the growing demands of high-precision measurement and control applications, it is equipped with cutting-edge features that are said to set a new standard in performance and versatility.
The NA2200 is a 5V CMOS-based AFE that integrates a high-gain Programmable Gain Amplifier (PGA) and a 16-bit Delta-Sigma (ΔΣ) Analog-to-Digital Converter (ADC). This combination ensures impressive signal accuracy and resolution, making it a suitable choice for various industrial and consumer applications, including pressure sensors, flowmeters, current measurement devices, thermostats and more.
The AFE utilizes a Programmable Gain Amplifier (PGA) to enhance analogue signals from sensors connected to its input terminals, allowing signal amplification up to 512 times through a combination of PGA1 and PGA2. These amplified signals are then converted to digital data by a 16-bit Delta-Sigma ADC and, after processing for offset and gain calibration, are transmitted to a microcontroller (MCU) via SPI communication. A built-in level shifter ensures the digital signals are compatible with a 5V MCU.
The device supports up to two inputs in differential mode and four inputs in single-ended mode. It includes two excitation current sources, suitable for temperature controllers using resistance temperature detectors. The ADC reference voltage can be externally set through VREFP/VREFN inputs or internally through the internal regulator. The NA2200 offers multiple operating modes: Normal Mode, Low Power Mode (with conversion speed and current consumption reduced to a quarter of Normal Mode), Sleep Mode (where all circuits are off except bias and REG circuits), and Standby Mode (with all circuits off and current consumption of 0.1 μA or less).

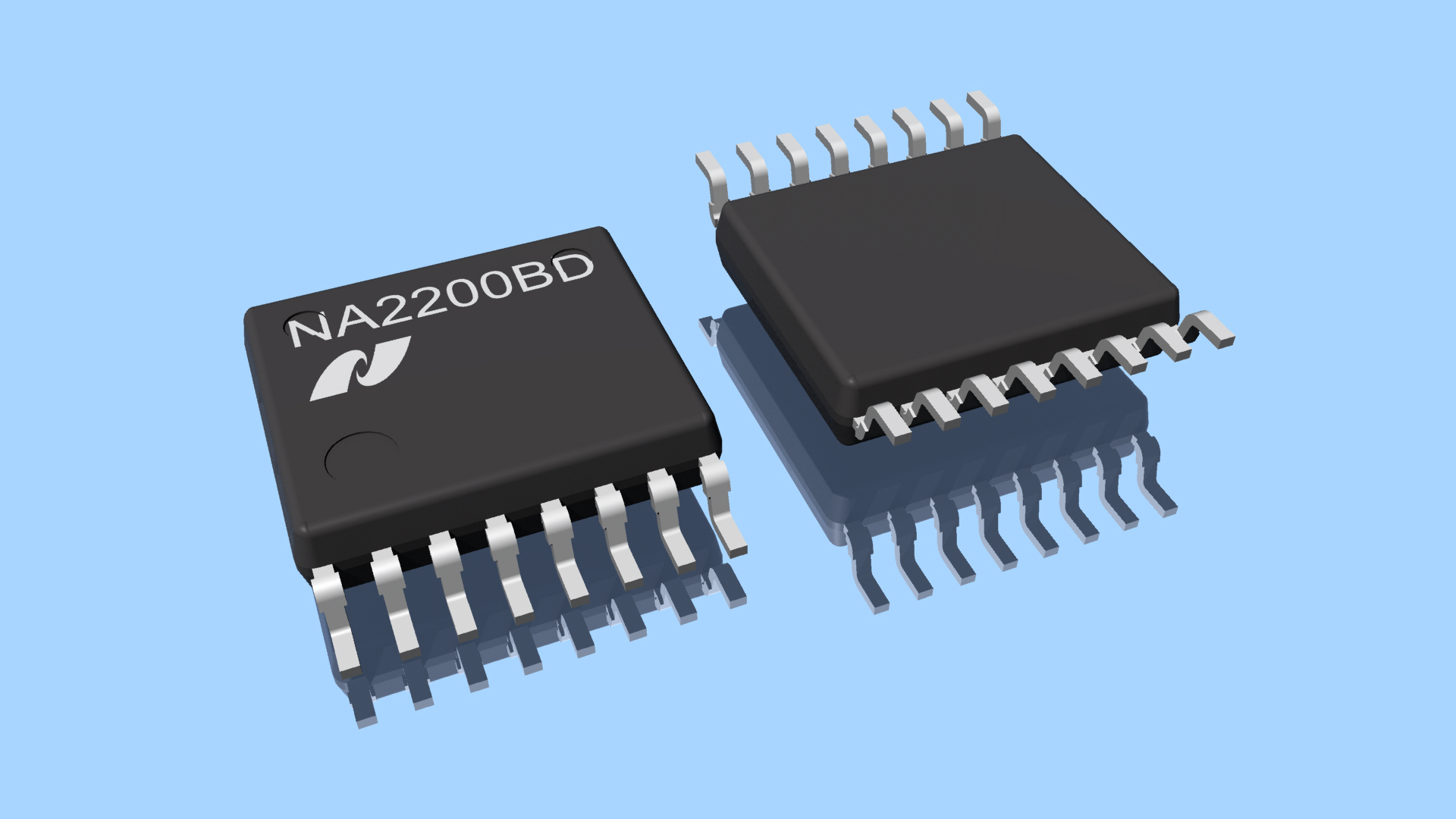

The NA2200 is available in an SSOP-16-BD package, measuring only 5.0 × 6.4 × 1.25 mm, making it suitable for space-constrained applications.
NA2200 Specifications:
- Supply Voltage: +2.7 V to +5.5 V
- Ambient Operating Temperature: -40 °C to 125 °C
- ADC Resolution: 16-bit (No missing codes)
- Data Rate: 0.814 k to 6.51 ksps
- Input mode: Differential: 2 inputs, Single-ended: 4 inputs, Pseudo-differential
- PGA: 1 V/V to 512 V/V
- System Calibration for offset & gain drift
- Built-in Regulator
- Current Consumption: Normal Mode 4 mA, Low Power Mode 1.3 mA
- Conversion mode: Single / Continuous
- Excitation Current Source: 2 systems (0.1, 0.25, 0.5, 1.0 mA)
- Communication Interface: SPI (3 or 4 Wire)
- CS (Chip Select) Pin
- Error detection: CRC8, Check Sum
- Package NA2200BD: SSOP-16-BD (5.0 × 6.4 × 1.25 mm)
- Datasheet: NA2200 Consumer version
