MORNSUN recently launched a new Rail R3 DC/DC converters URF1D_LD-40WR3, as an extension of MORNSUN 6-20W rail R3 DC/DC converters.

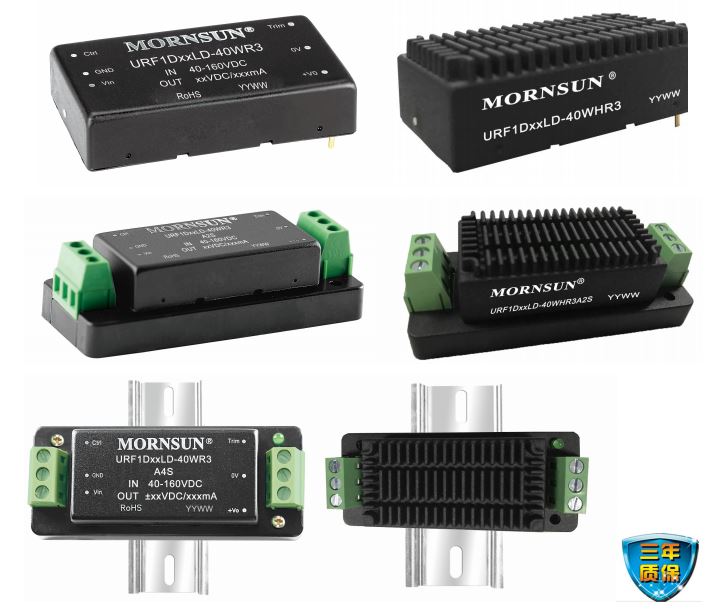

This new series URF1D_LD-40WR3provides a wide input voltage range of 40-160VDC required by input voltages of 72V, 96V, 110V in railway industry. Outputs and isolation voltage up to 3000VDC/1500VAC ensure them to meet the railway locomotive EN50155 standard requirements and EN62368 standard requirements. The converters also offer a wide operating temperature range of -40℃to +85℃. Protections for input UVP, OSC, OCP, OVP and OTP are also included. Housed in 2*1 inch DIP package, this URF1D_LD-40WR3 series is available for packages with optional heat sink in PCB mount, chassis mount and DIN rail mount, which offers flexibility to the designer of the end-product and makes this series ideal for applications in railway monitoring, lighting equipment, information display and other railway vehicle-related equipment.
Features:
- Ultra wide input voltage range: 40-160VDC
- Enhanced isolation, isolation voltage: 3000VDC/1500VAC
- Operating temp. range: -40℃to +85℃
- Input Under-voltage protection, output short circuit, over-current, over–voltage protection, over-temperature protection
- International standard pin-out
- Reverse voltage protection available with A2S (Chassis mounting) or A4S (35mm DIN-Rail mounting)
- Meets requirements of railway standard EN50155
| Part Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | No. of outputs | Isolation(VDC) | Package | Dimension (mm) | Certification | Sample |
| URF1D03LD-40WR3 | 40 | 40~160 | 3.3 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – | |
| URF1D05LD-40WR3 | 40 | 40~160 | 5 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – | |
| URF1D12LD-40WR3 | 40 | 40~160 | 12 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – | |
| URF1D15LD-40WR3 | 40 | 40~160 | 15 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – | |
| URF1D24LD-40WR3 | 40 | 40~160 | 24 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – | |
| URF1D48LD-40WR3 | 40 | 40~160 | 48 | 1 | 3000 | DIP | 50.80*25.40*11.80 | – |
Please refer to the technical manual for specific product parameters.
