Space is a scarce commodity – especially in the world of electrical engineering, where every millimetre counts. To meet these requirements, ODU offers a solution with the ODU MINI-SNAP Super Shorty in the F series. This connector is designed to solve problems in places with no room for error, particularly with the option of tailoring the cable assembly to the specific application.

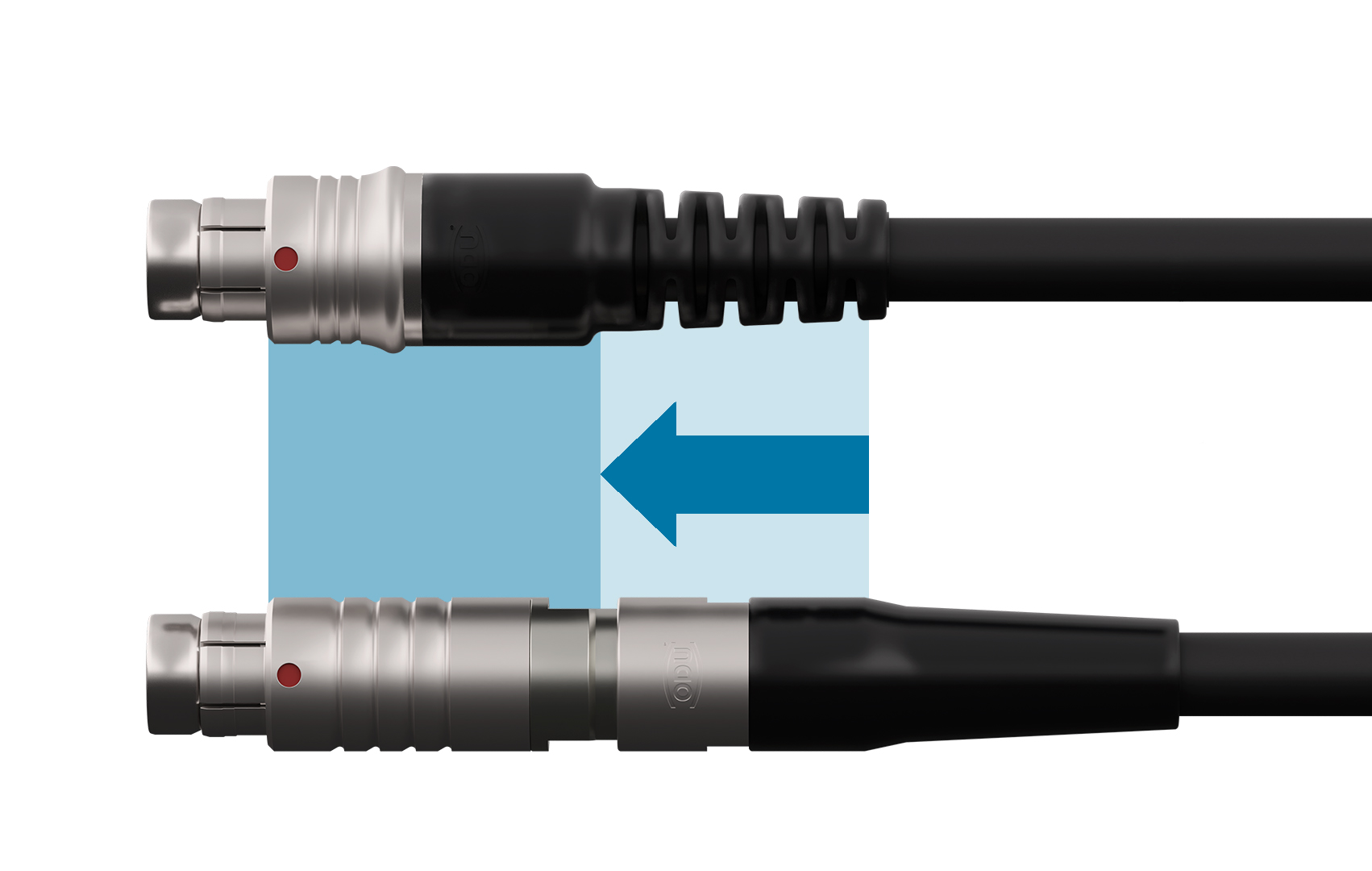

Size comparison ODU MINI-SNAP Series F
Optimized for demanding conditions: 25% space saving without loss of quality
The ODU Super Shorty combines the advantages of the ODU MINI-SNAPÂ series, but with a length reduction of up to 25% – making it the ideal solution for applications that require easy mounting in extremely confined spaces.
Assembly and complete solution from a single source
Despite its reduced size, this connector has enough space for convenient and professional connection of the cable strands. The design also provides the optimum conditions for over-moulding and protection of the termination area – either in a straight or right-angled design. The ODU MINI-SNAPÂ Series F Super Shorty connectors are available as ready-made assemblies with matching cable and over-moulding tailored to the specific application.
Durable and reliable thanks to protection class IP68
The technical characteristics of the ODU MINI-SNAP Series F Super Shorty underline its position as the optimum solution for demanding applications in confined spaces.
Rated at IP68 and with a service life of at least 5,000 mating cycles, the push-pull locking system ensures both a safe connection and easy removal in hard-to-reach places.
Even blind-plugging is possible – thanks to the simple handling and half-shell coding.
As an extra option, the ODU MINI-SNAPÂ Series F Super Shorty is also available in a very attractive tin-nickel version in addition to the standard finish in matt chrome.
The compact design, whilst retaining the technical advantages, make the ODU MINI-SNAP Super Shorty of the F series an attractive solution, according to the company. “Practical in use, the connector and cable provide a safe connection for transmissions under adverse conditions – without compromise,” ODU continued.
